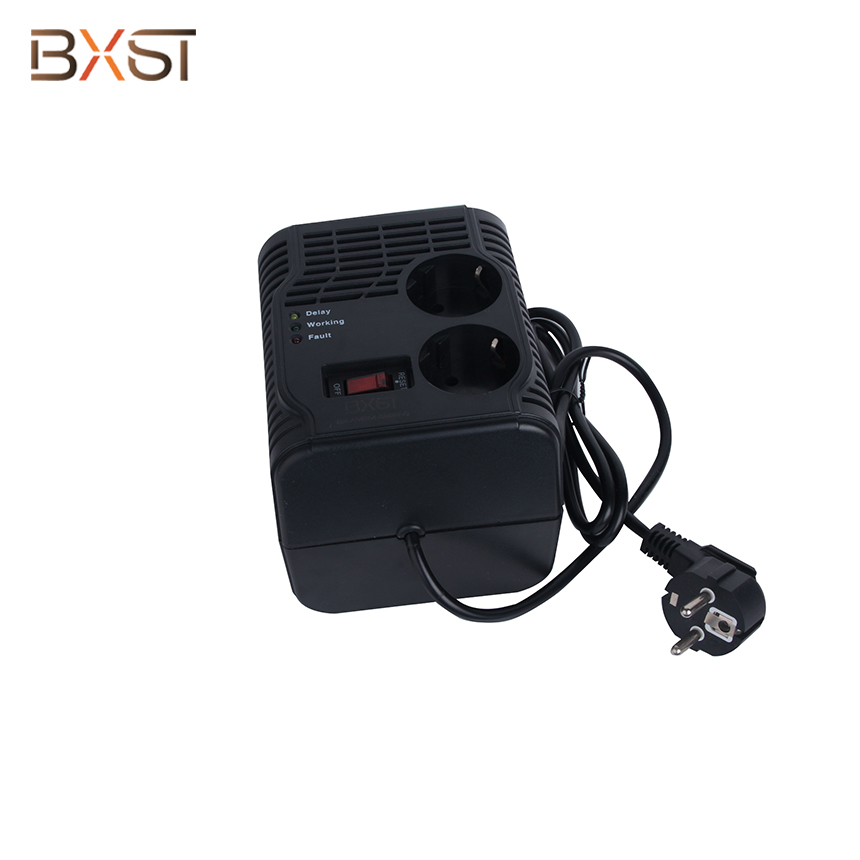

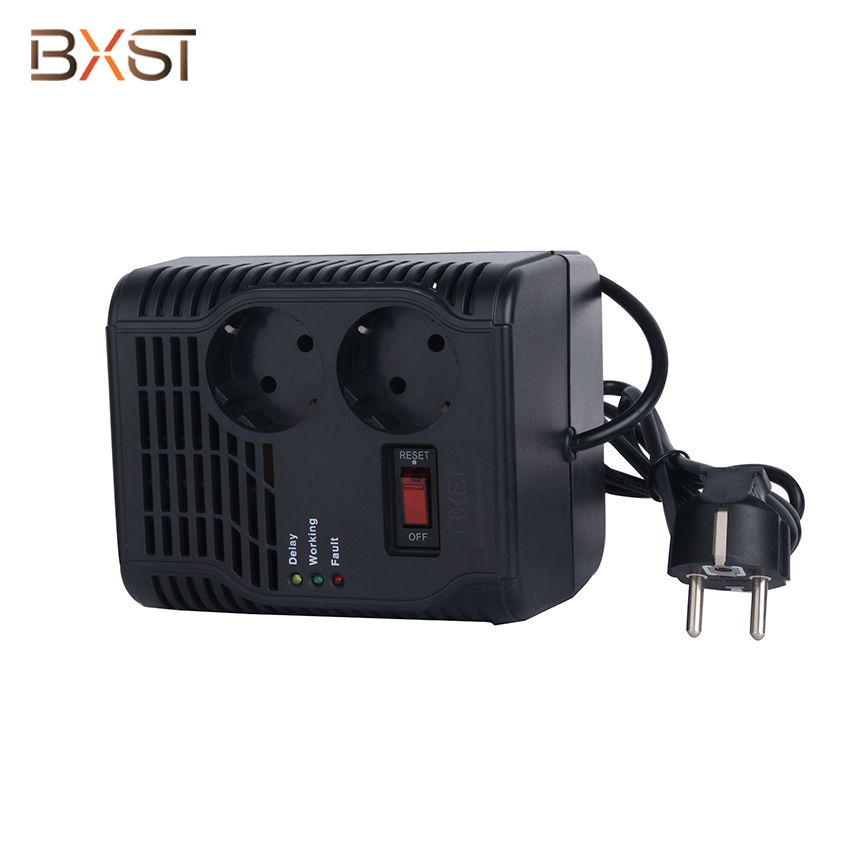

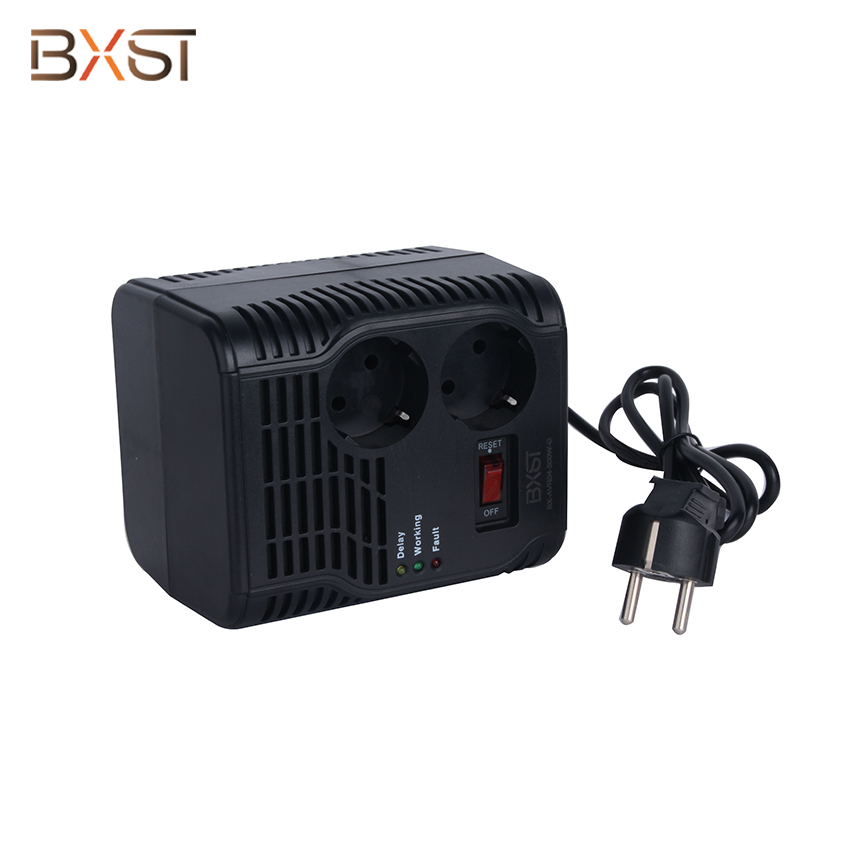

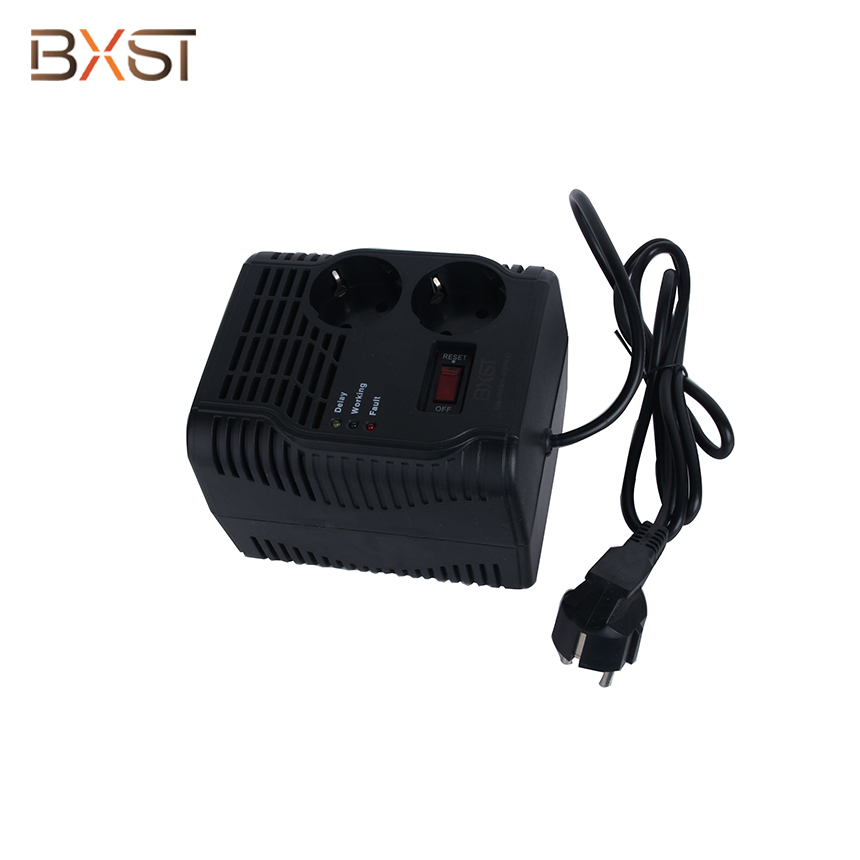

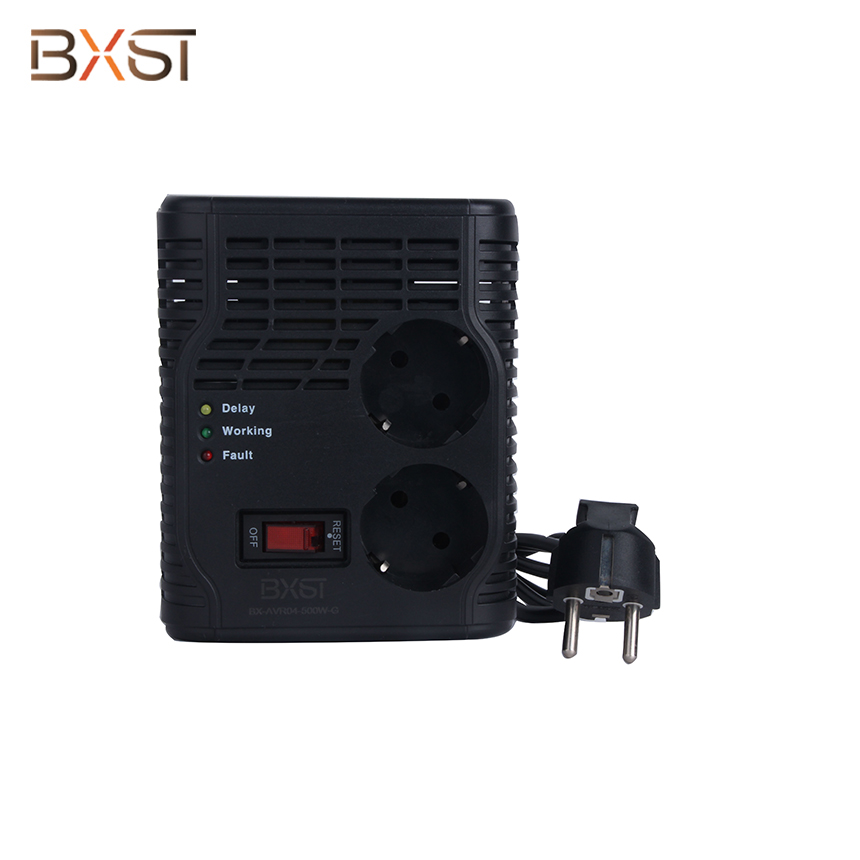

Brand: BXST
Model Number: BX-VRS-G2 300/500W
Relay control
Input voltage:220V
Frequency:50/60Hz
Output voltage:220V AC
Precision:220V±8%
Transformer:AL 80%
LED Digital Display
Features:
1. Relay control
2. Wide range voltage regulation
3. Technology: classis series, EI transformer or toroidal transformer, relay type
+86-577-86666801/86666802
bxst03@bao-xiang.com
The single-phase voltage regulator is composed of a contact type auto-regulator, a servo motor, and an automatic control circuit. The working principle is: when the grid voltage is unstable or the load changes, the automatic sampling control circuit sends out a signal and drives the servo motor to adjust the position of the auto-coupler carbon brush, so that the output voltage is adjusted to the rated value and reaches a steady state with overvoltage. , undervoltage, overload, bypass, lightning protection and other protection functions and waveforms are not distorted, reliable performance, long-term operation and so on. It can ensure the normal operation of the electrical equipment.
1.Product Feature
1. Relay control
2. Wide range voltage regulation
3. Technology: classis series, EI transformer or toroidal transformer, relay type
4. Automatic voltage regulation
5. LED meter display
6. 4 output EURO sockets
7. Insulation resistance≥2MΩ
2.Product Specification
|
BX-VRS-G2 |
|
|
Power |
220V |
|
220Input frequency |
50/60Hz |
|
Output voltage |
220V AC |
|
Output precision |
220V+/-8% |
|
Time delay |
Delay/un-delay(180/3 seconds selectable) |
|
Efficiency |
>90% |
|
Load power factor |
0.8 |
|
Phase |
single phase |
|
Operating temperature |
0-40℃ |
|
Storage temperature |
-15℃-45℃ |
|
Operating relative humidity |
10%RH-102%RH |
|
Customize option for specification and availability please contact BXST |
|
3.Dimension and weight
|
Model |
QTY/CTN |
MEAS(cm) |
G.W.(kg) |
N.W.(kg) |
Container20(PCS) |
|
BX-VRS-G2 |
4 |
47*27*43 |
13.8 |
12.8 |
