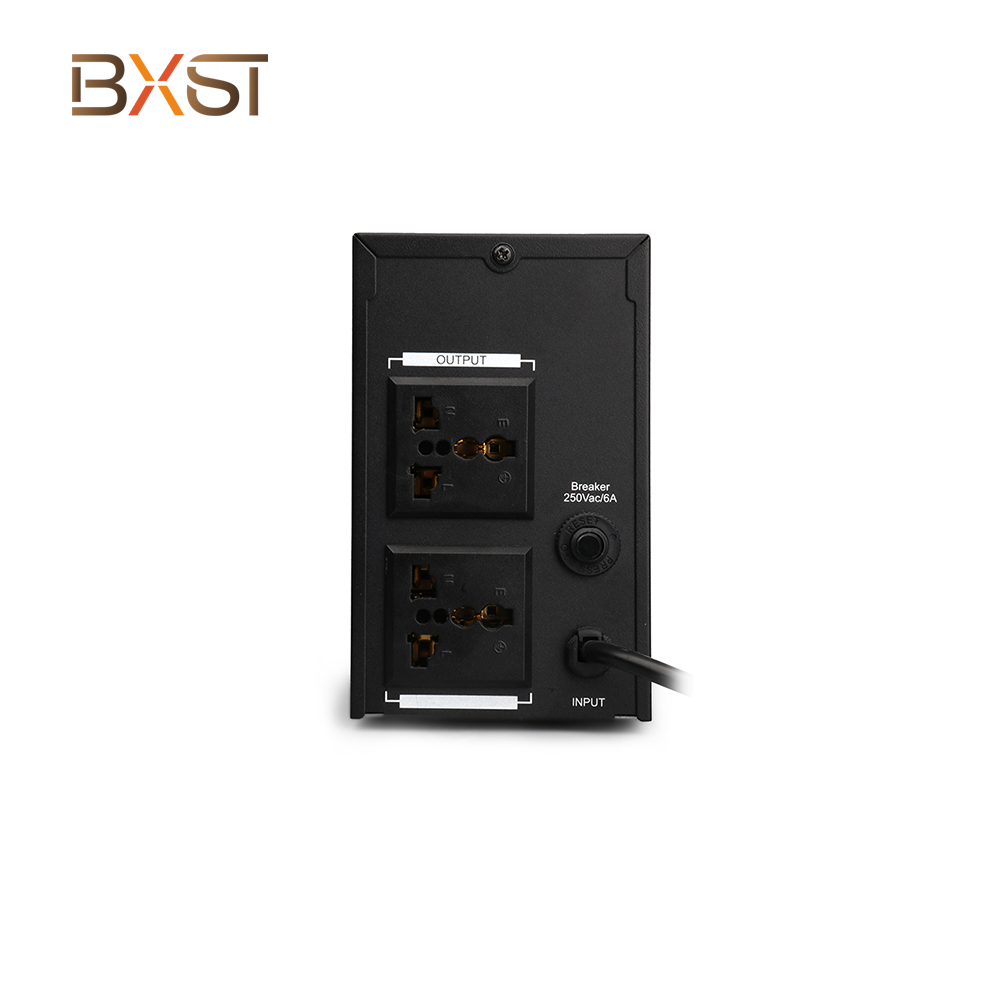

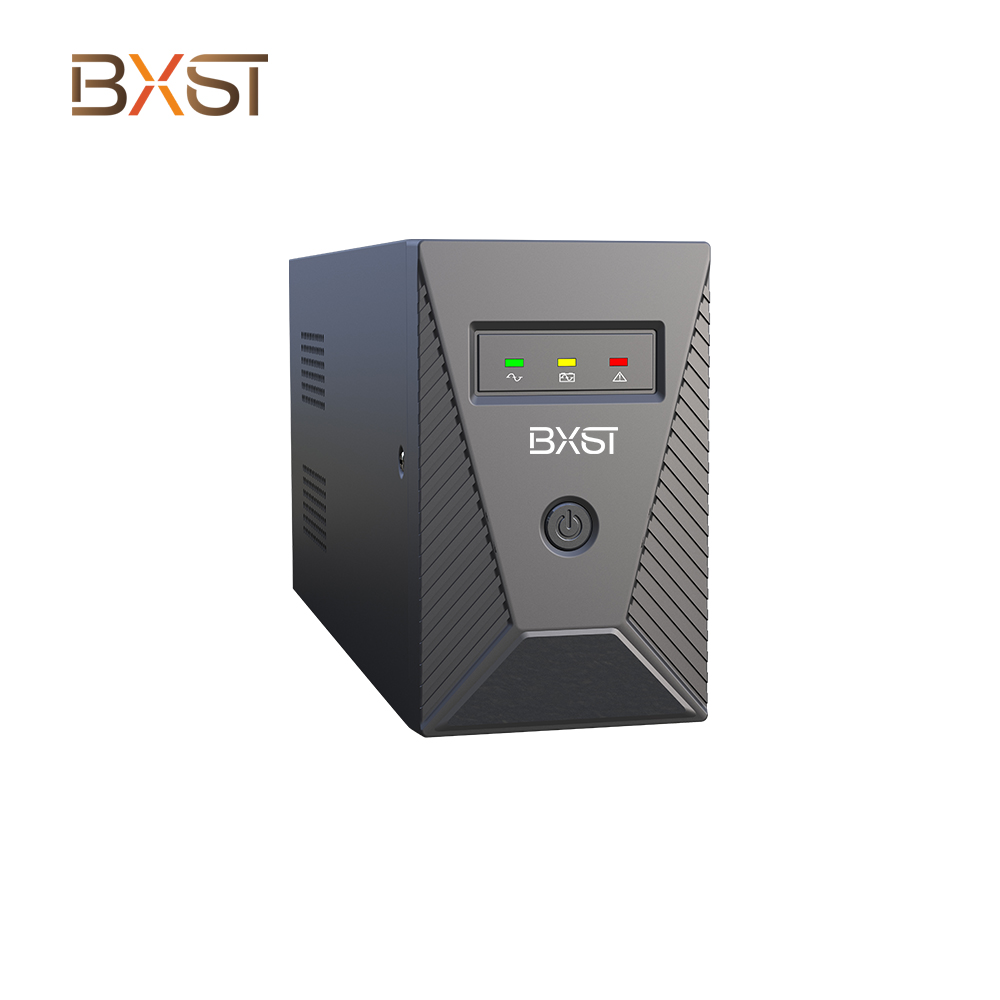

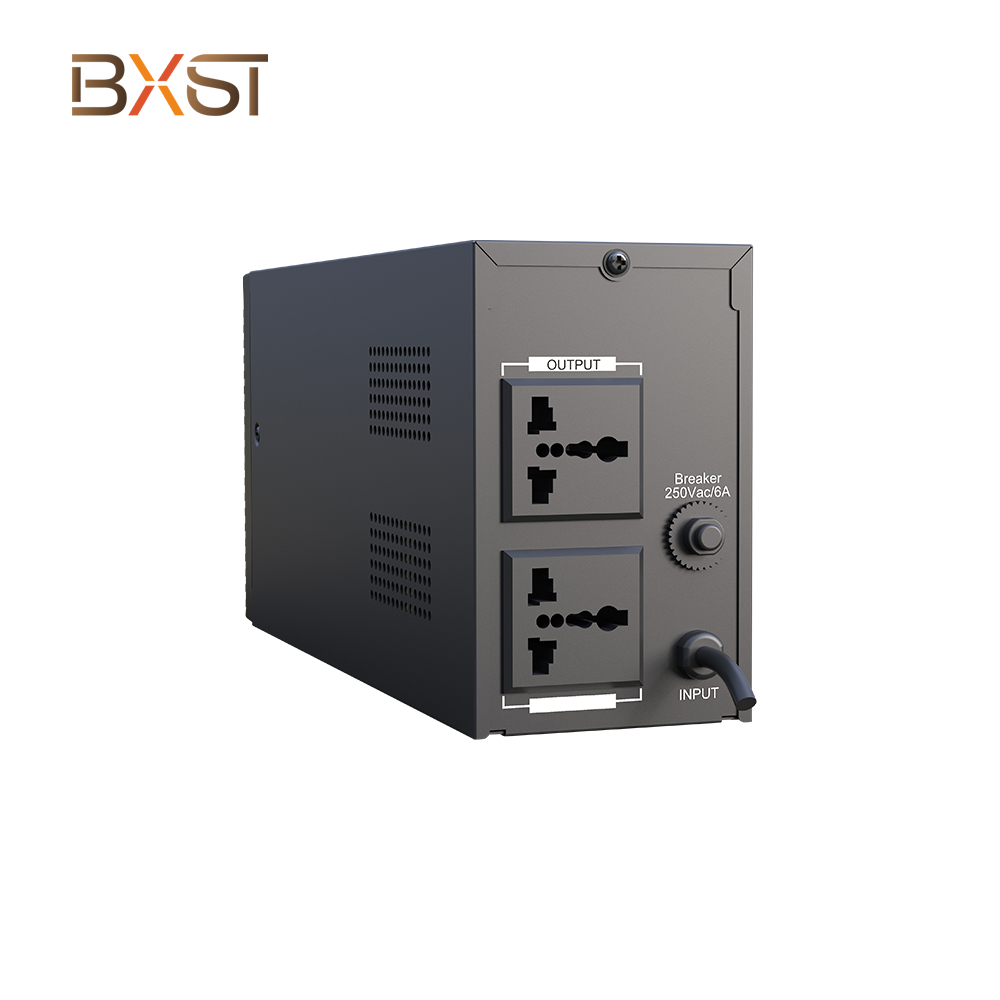

BXST 800VA/480W Online Backup Power Supply Backup UPS

BXST 800VA/480W Online Backup Power Supply Backup UPS

800VA/480W LED
battery：12V9AH×1
Voltage range：110V(81-134)/120V(89-145)
Frequency：＞40 Hz(Auto sensing)
Voltage range： 110/120VAC ±10%
Frequency range(battery mode)：60/50±1Hz
Transfer time：Typical 4-8ms, 13ms max
Waveform (Batt.mode)：Simulated sine wave
Charging time: 6.5 hours to full charge
4 US standard plugs and sockets
Product size:306*86*140mm

+86-577-86666801/86666802

bxst025@bao-xiang.com

Online Inquiry

Product Detail

MODEL		BX-UP011
Capacity		800VA/480W
INPUT	Voltage	220Vac/230Vac
	Voltage range	140-290Vac/140-300Vac
	Frequency	>40Hz(Auto sensing)
OUTPUT	AC Voltage regulation (Batt.mode)	220Vac/230Vac±10%
	Frequency range (Batt.mode)	50Hz±1Hz or 60Hz±1Hz
	Transfer time	Typical 4-8ms,13ms max
	Waveform (Batt,mode)	Simulated sine wave
BATTERY	Battery voltage	12V
	Battery number	9AH*1
	Charge current	1.0A
INDICATORS	AC Mode	Green lighting
	Battery Mode	Orange flash
	Fault	Red lighting
PROTECTION	Full Protection	Short circuit,overload, overcharge and overdischarge protection
ALARM	Battery mode	Sounding every 10 seconds
	Low battery	Sounding every second
	Overload	Sounding eveny 0,5 seconds
	Fault	Continuously sounding
OPERATING ENVIRONMENT	Humidity	0-90% RH@0-40°C (non-condensing)
OPERATING ENVIRONMENT	Noise level	Less han 40 dB
MANAGEMENT	Communication port	For choice(USB & RJ45)
